Potter & Brumfield

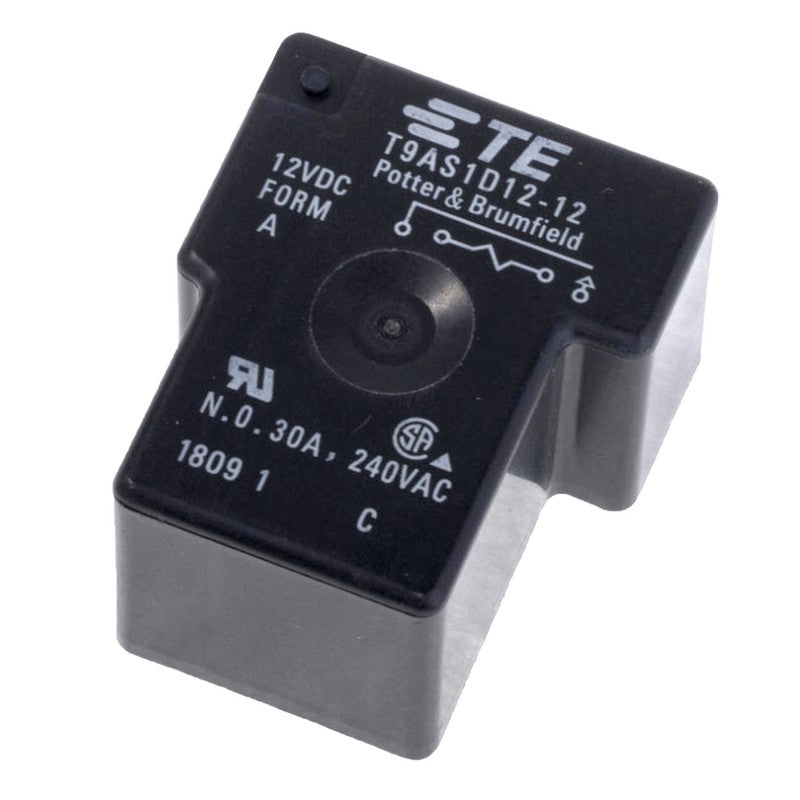

Potter & Brumfield T9AS1D12-12, 10-Pack, General Purpose Relay
Regular price
$69.00
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Ships from Toronto, Canada.
Condition: NEW
The price is for a pack of 10 relays and includes free shipping.
The T9AS1D12-12 is a General-purpose Relay with wash-tight plastic case, knock off nib enclosure and 1-form-A (1 NO) AgCdO contact. This T9A-series relay features PCB mounting, PCB terminals for coil and contacts, non-latching coil and 12VDC coil voltage with 1W.
Features
- Class-F coil insulation
- 155°C Maximum coil temperature
- 1.65mm maximum excursions vibration resistance
- 1 x 10⁹Ω Initial insulation resistance between insulated elements
- 3.18mm Clearance/6.3638mm creepage
- Initial dielectric strength 1500Vrms between open contacts
Details
- Contact Configuration : SPST-NO
- Coil Voltage : 12VDC
- Contact Current : 30A
- Product Range : T9A Series
- Relay Mounting : Through Hole
- Coil Type : DC Monostable
- Contact Voltage VAC : 240VAC
- Relay Terminals : Solder
- Contact Voltage VDC : 28VDC
- Contact Material : Silver Cadmium Oxide
- Coil Resistance : 144ohm
- Approvals & Standards : CSA, UL
