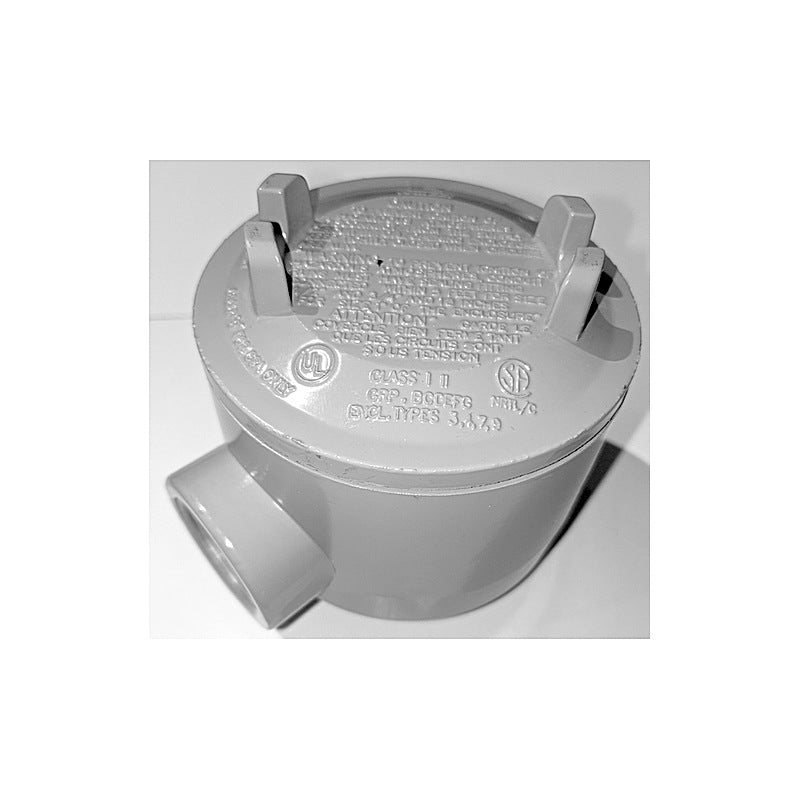

Rawelt GRE-0582 Explosion Proof Raintight Hazardous Location Diecast Aluminum Electrical Box, 1 port, 1 inch, (04.04.2341)
Regular price $38.00
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
- Body and cover: Diecast copper free aluminum.
- " O " Ring Neoprene provides raintight fit.
- Electrostatic powder coating epoxy/polyester. Minimum thickness 2 mils.
- Saline chamber test to paint according to ASTM B117.
- Paint adhesion test according ASTM 3359.
- Resistance to mechanical impacts to body according IK09, thanks to its design that does not have elements susceptible to breakage.
- Green ground screw included.
- FINISH: Electrostatic powder epoxy/polyester coating.
- NPT thread for use with RIGID conduit.
- Manufactured in compliance with: UL 886, UL 1203, CAN/CSA-C22.2 No. 30
- Class I, Div. 1 & 2, Groups B, C, D.
- Class II, Div. 1, Groups E, F, G.
- Class II, Div. 2, Groups F, G.
- Class III
- NEMA 3, 4 X, 7 C D, 9 E F G.
- Explosion Proof
- Dust & Ignition Proof
- Raintight, suitable for wet Locations
- Hub/Hole Size: 1 inch, 25.4 mm
- Cover opening: 3.27 inches, 127 mm
- Volume: 17.3 cu. in, 289.9 cc
- Weight: 1.17 lb, 530 g
