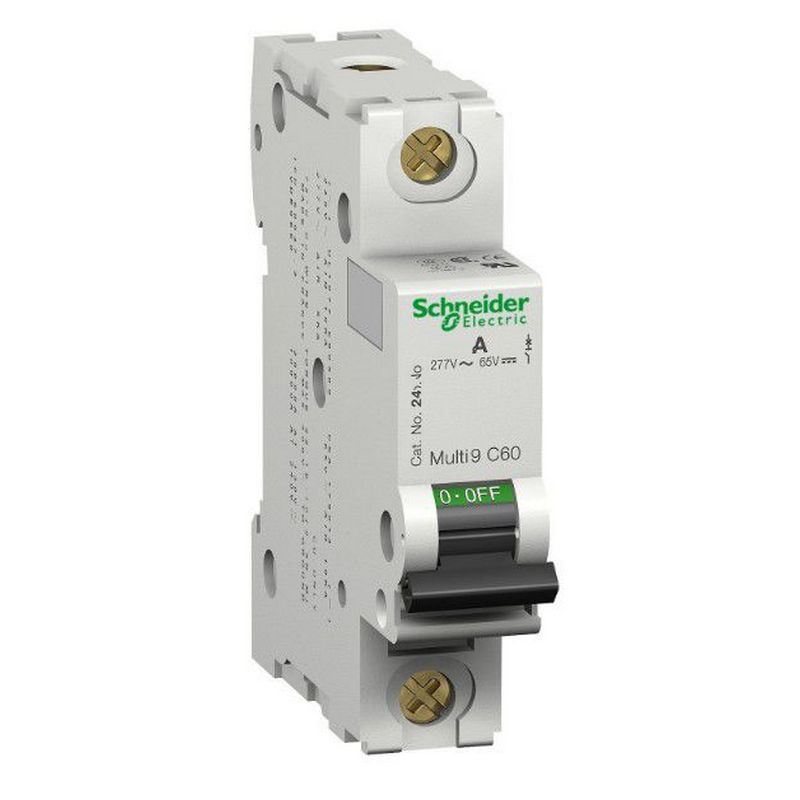

Schneider Electric 24426 Miniature Circuit Breaker Multi 9 C60 2A 277V 1P
Schneider Electric

Schneider Electric 24426 Miniature Circuit Breaker Multi 9 C60 2A 277V 1P

Regular price $19.00 $0.00 Unit price per

FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!

Condition: New

Features

  • Small Size — L × W × H, mm: 81 × 18 (Per Pole) × 75
  • DIN Rail Mount
  • Two Trip Curves: C — 7-10 Times Rating; D — 10-14 Times Rating
  • Positive Indication of Contact Disconnect
  • Applications Permitting Supplementary Protectors:
  • Supplements or Provides Additional Protection for Sensitive Electronics Inside the Equipment
  • Used on the Load Side of Branch Circuit Protection to Protect Criteria or Sensitive Internal Circuitry Such as: Computers and Microprocessors, Communications Equipment, Electronic Controllers and Power Supplies
  • Permitted for Protection of Motor Control Circuits NEC 430-72, Unless Transformers Are in Circuit, Then UL 489
  • Specifications:
  • Ampere Ratings: From 0.5 to 63 Amps
  • 10K Air @ 120/240 VAC; 5K Air @ 480Y/277 VAC
  • DC Ratings (C-Curve Only): 1-Pole — 60 VDC; 2-Pole — 125 VDC
Specifications
  • Actuator Type Toggle
  • Characteristic C Curve
  • Current Rating 2 A
  • Dimensions 0.71 W x 3.19 H x 3 D In
  • Mounting Type DIN Rail Mount
  • Number of Poles 1 Pole
  • Overload Magnetic
  • Special Features Trip-Free Design
  • Standards UL Listed
  • Termination Screws
  • UPC Code 785901346159
  • Voltage Rating 240 VAC ; 480 VAC ; 277 VAC ; 65 VDC
