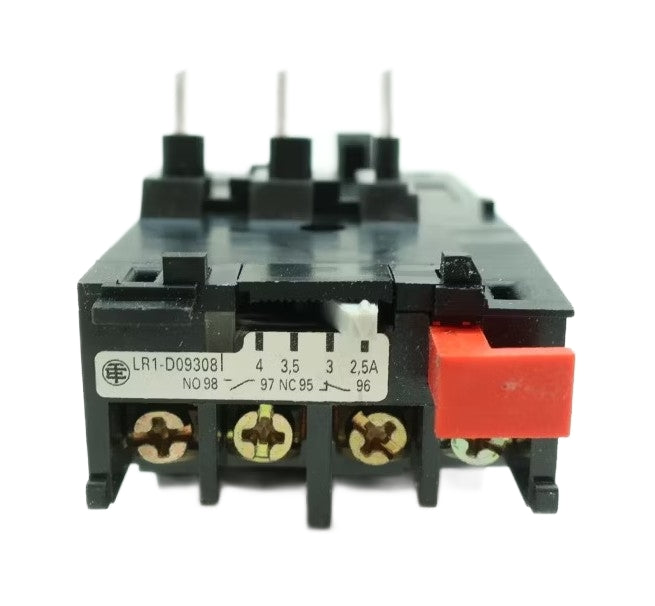

Schneider Telemecanique LR1-D09-308 New Genuine Original Thermal Overload Motor Starter Relay
Schneider Telemecanique LR1-D09-308 New Genuine Original Thermal Overload Motor Starter Relay
Regular price
$67.00 CAD
Regular price
Sale price
$67.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: NEW, Missing Original Box. May have osmetic scratches and wear from long term storage and handling but item is unused. Sold with our no-hassle 30-day return warranty.
The Schneider Telemecanique LR1-D09-308 is a reliable bimetallic thermal overload relay designed for motor protection against overcurrent and single-phasing. It features an adjustable current setting range of 2.5 to 4.0 Amps and is rated for operation up to 600 Volts AC.
Key Data:
The Schneider Telemecanique LR1-D09-308 is a reliable bimetallic thermal overload relay designed for motor protection against overcurrent and single-phasing. It features an adjustable current setting range of 2.5 to 4.0 Amps and is rated for operation up to 600 Volts AC.
Key Data:
- Relay Type: Thermal Overload Bimetallic
- Current Adjustment Range: 2.5 to 4.0 Amps
- Maximum Rated Voltage: 600 Volts AC
- Number of Poles: 3 Poles
- Trip Class: Class 10
- Compatible Contactors: LC1-D09 through LC1-D25
- Auxiliary Contacts: 1 NO + 1 NC
- Operating Temperature: -4 to 140 degrees Fahrenheit (-20 to 60 degrees Celsius)
