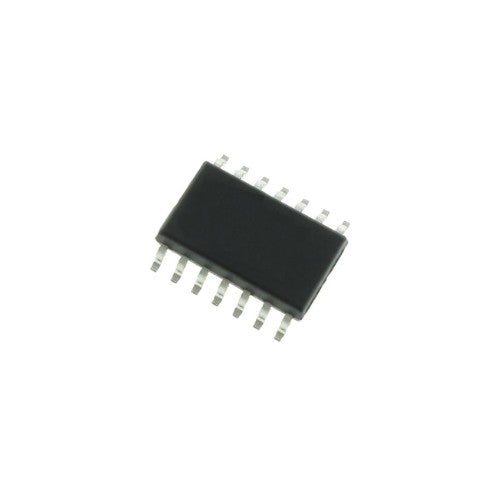

STMicroelectronics LM324DT Quad Operational Amplifier Low Power 4 Circuit 14-SO, Reel of 2500
STMicroelectronics LM324DT Quad Operational Amplifier Low Power 4 Circuit 14-SO, Reel of 2500
Regular price
$242.00 USD
Regular price
Sale price
$242.00 USD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Condition: New
The price is for one reel of 2,500 pcs.
The LM324DT is a quad Operational Amplifier which employs internal frequency compensation, features high gain, low power and low input bias current. It operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Features
- Input common-mode voltage range includes ground
- 100dB Large voltage gain
- 375mA/amplifier Very low supply current
- 20nA Low input bias current
- 5mV Maximum Low input offset voltage
- 2nA Low input offset current
- Industrial
Specification
- Moisture Sensitivity Level: MSL 1 - Unlimited
- RoHS Compliant: Yes
- No. of Amplifiers : 4 Amplifier
- Bandwidth : 1.3MHz
- Slew Rate : 0.4V/µs
- Supply Voltage Range : 3V to 30V
- Amplifier Case Style : SOIC
- No. of Pins : 14Pins
- Operating Temperature Min : 0°C
- Operating Temperature Max : 70°C
- MSL : MSL 1 - Unlimited
