Telex RadioCom BTR-300 Professional Single Channel VHF Wireless Intercom Base Station
Telex

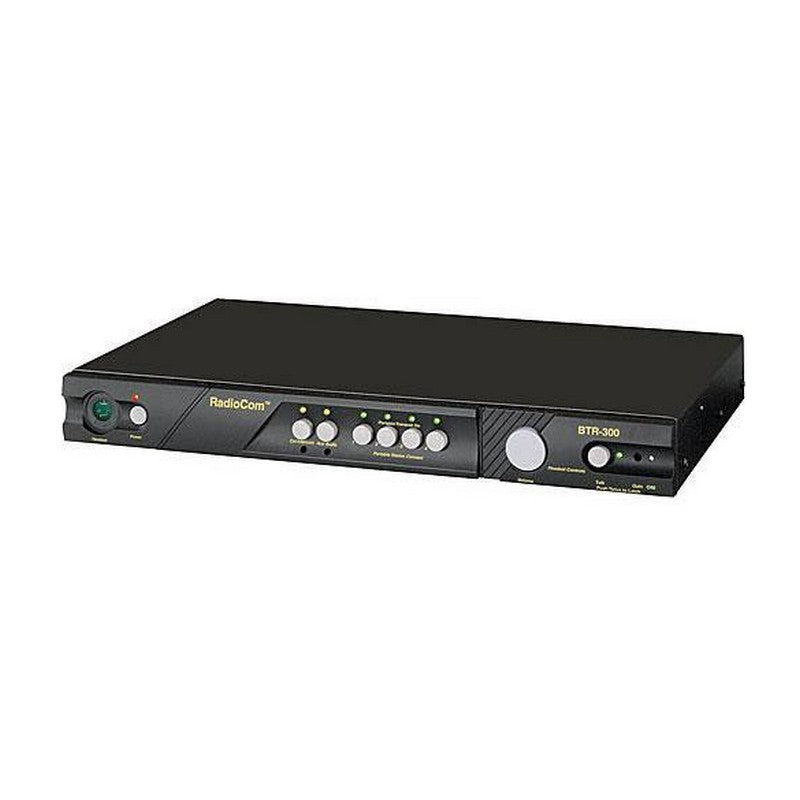

Telex RadioCom BTR-300 Professional Single Channel VHF Wireless Intercom Base Station

Regular price $1,299.00 $0.00 Unit price per

Condition: New. Brand new in original Telex box complete with all components. See below for contents of box. Sold with our 30-day "no-hassle" return warranty.

The RadioCom BTR-300 from Telex is professional-quality wireless intercom base-station that can operate in full duplex with up to four TR-300 belt pack transceivers. Full duplex operation allows for natural conversation, without having to wait for another user to finish speaking before you can respond. A transmitter and headset input is included on the BTR-300 so the operator can fully communicate with the portable units.

An auxiliary input enables you to feed the system with any other audio material you may need, as well as link two BTR-300 base stations together. The BTR-300 has been designed to easily integrate with many kinds of wired intercom systems. Internal switches enable you to accommodate the BTR-300 to work with Clearcom, RTS 2 Wire, and 4 Wire intercoms.

This system operates on selected frequencies in the 150 - 216 MHZ VHF band. It has a powerful transmission range of up to 2000' (609.6 meters) when the various transceivers are within line of sight of one another. Its metal enclosure offers superior shielding. When you need a communication system with excellent performance and build quality, the Telex RadioCom BTR-300 will deliver.

For spec sheet, click here.

For user manual & installation instructions, click here.

Features
  • Features four receivers to operate up to four TR 300 belt packs with full duplex communication
  • One transmitter is built into the BTR-300 with a headset input on the front panel to communicate with the portable belt packs
  • Compatible with many other wired intercom manufacturers, designed to interface easily with wired systems
  • Powered by an external AC power supply, or any 12V AC/DC 700 mA source
  • RF indicator lights on the front panel for each portable belt pack
  • Speaker output jack with adjustable volume control
  • Metal casing offers superior shielding
  • Tabletop or rack mountable operation

In the Box

  • Telex RadioCom BTR-300 VHF Fixed Crystal Wireless Intercom Base Station
  • 5/8-Wave Transmit Antenna
  • 5/8-Wave Receive Antenna
  • Rack Mount Brackets
  • External AC Power Supply
Specifications
  • Frequency Range 150 - 216 MHz
  • Microphone Input Type 4-Pin XLR Headset Jack
  • Receiver Dual Conversion Superheterodyne, FM
  • Limiter Internal Compressor
  • Signal-to-Noise Ratio 90 dB
  • Distortion Less Than 1% @ Rated Output
  • Image Rejection 70 dB or Better
  • Front Panel Controls and Indicators External Intercom Button
  • Auxiliary Audio Button
  • 4 x Portable Transmit On/Portable Station Connect Buttons
  • Volume Control
  • Push To Talk Button
  • Gain Control
  • Power Button
  • Power Requirements 12V AC/DC 700 mA
  • Dimensions 15.75 x 1.75 x 10.5" (400 x 45 x 260 mm)
  • Weight 4.5 lbs (2 kg)
Cross-Reference
Telex BTR300
