Turck

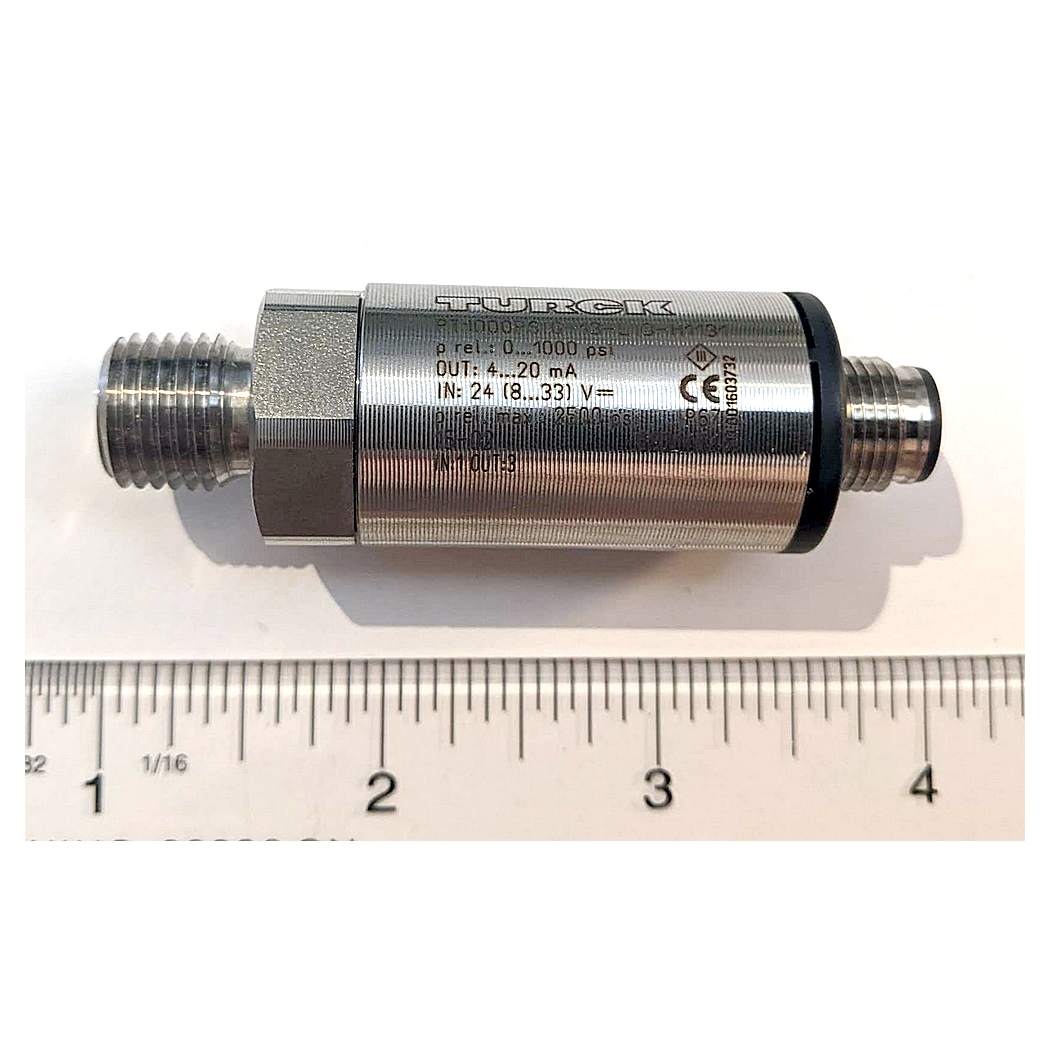

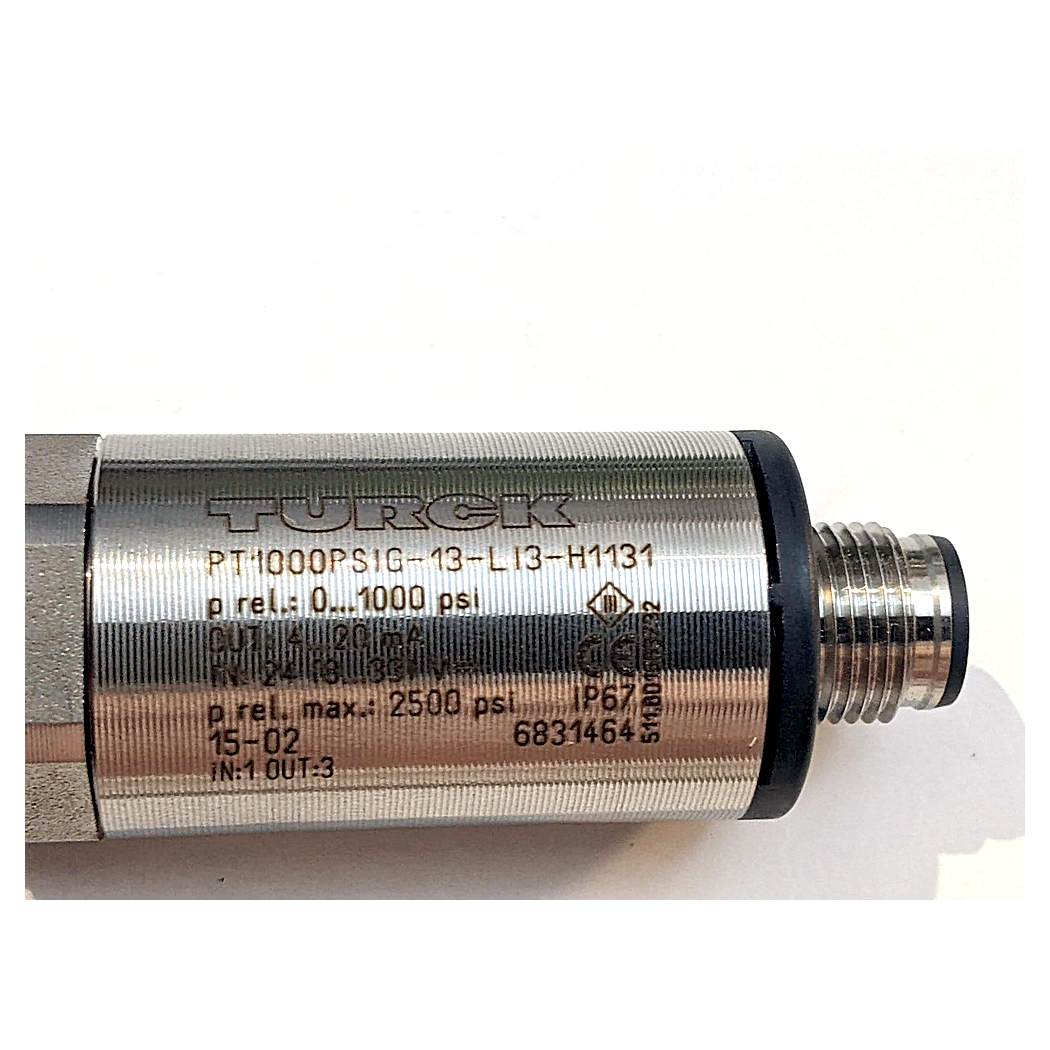

Turck PT1000PSIG-13-L13-H1131 Pressure Transmitter (6831464)
Regular price
$249.00
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Condition: New
Features
- Compact and robust design
- Pressure connection with integrated peak pressure aperture
- Minimum influence of temperature on accuracy within the entire temperature range of -40…+125°C
- Excellent EMC properties
- Pressure range 0…1000 psi rel.
Specifications
- Process connection 1/4″ NPT-18 male thread
- Pressure type Relative pressure
- Pressure range bar 0…68.95 bar
- Pressure range psi 0…1000 psi
- Operating voltage 8…33 VDC
- Electrical output Current output (2-wire)
- Current output 4…20 mA
- Electrical connection Connector, M12 × 1
- Housing material Stainless-steel/Plastic, 1.4305 (AISI 303)
- Pressure transducer material Ceramic Al₂O₃
- Medium temperature -40…+125 °C
- Ambient temperature -40…+85 °C
- Protection class IP67
