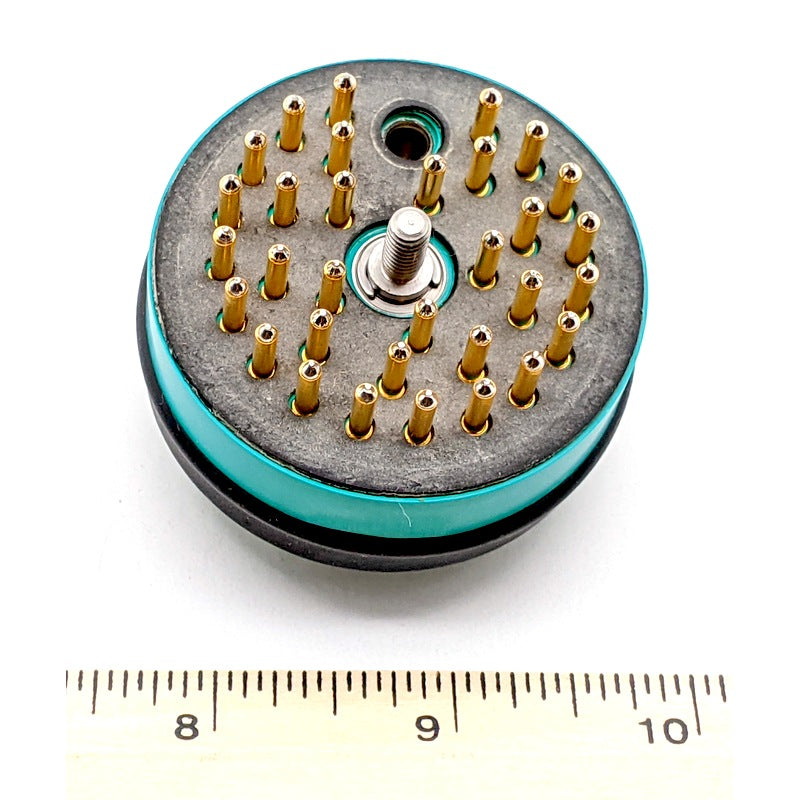

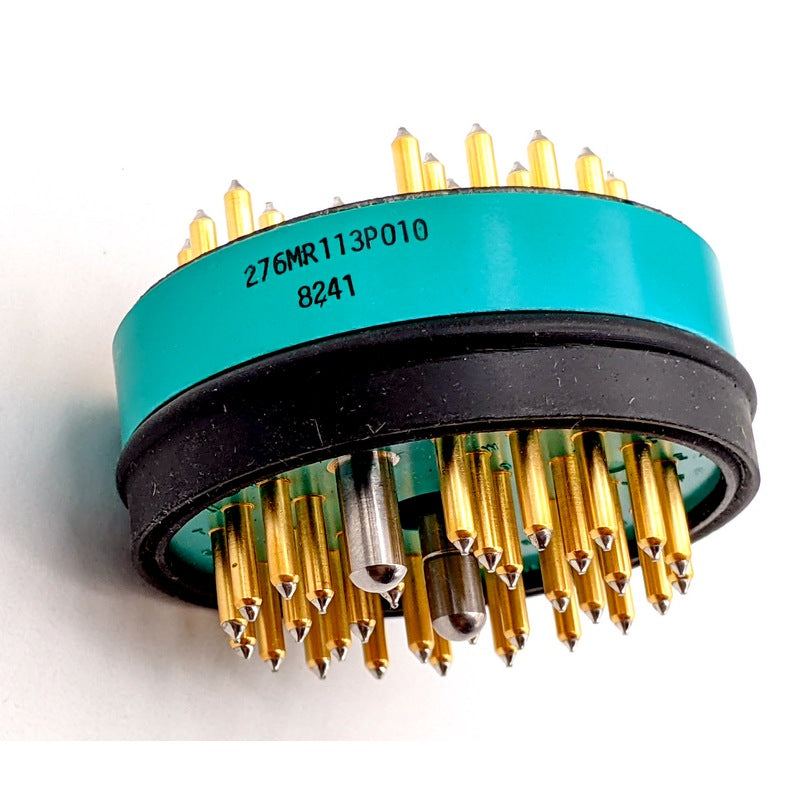

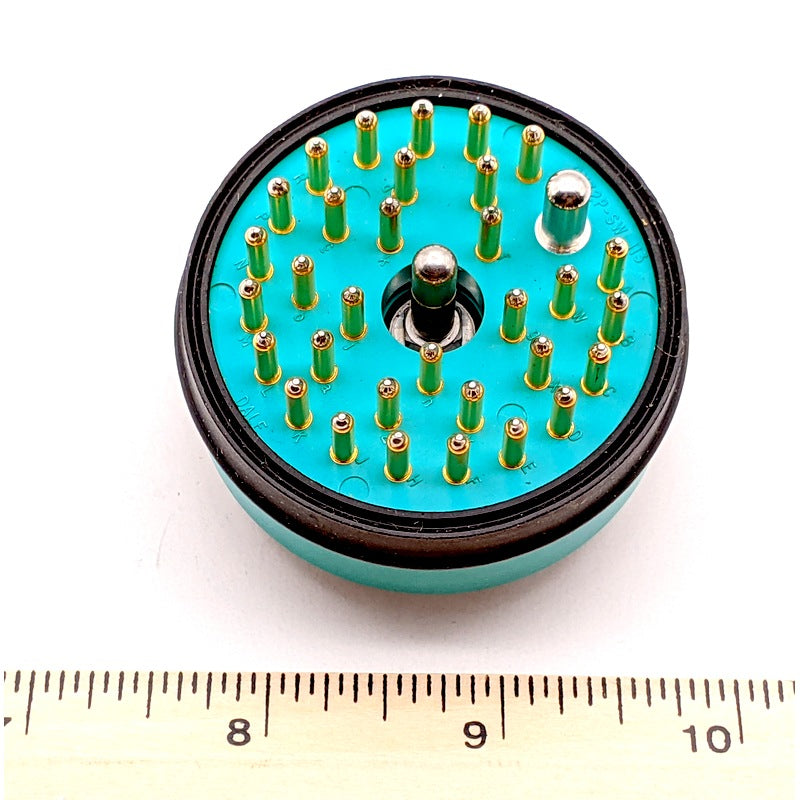

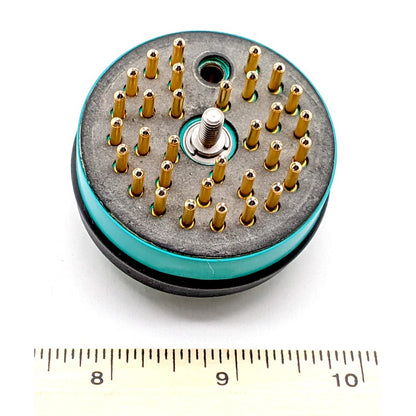

Vishay Dale QX32P-SW113 New Genuine Original Electrical Connector Insert

Ships from Toronto, Canada.

Condition: New Old Stock

The QX32P-SW113 is a high-performance 32-pin electrical connector insert specifically designed for mission-critical aerospace and military circular connectors. Featuring a diallyl phthalate plastic body and gold-over-silver plated copper alloy contacts, it provides exceptional electrical conductivity and environmental resistance for high-current applications up to 22 Amps.

Key Data:

• Included Contact Quantity: 32 Pins
• Body Style: Straight Shape Round
• Insert Material: Plastic Diallyl Phthalate
• Contact Material: Copper Alloy
• Contact Maximum Current Rating: 22.0 Amps
• Contact Surface Treatment: Gold over Silver
• Overall Diameter: 2.108 in (53.54 mm)
• Overall Height: 1.555 to 1.578 in (39.50 to 40.08 mm)
• Terminal Type: Solder Well
