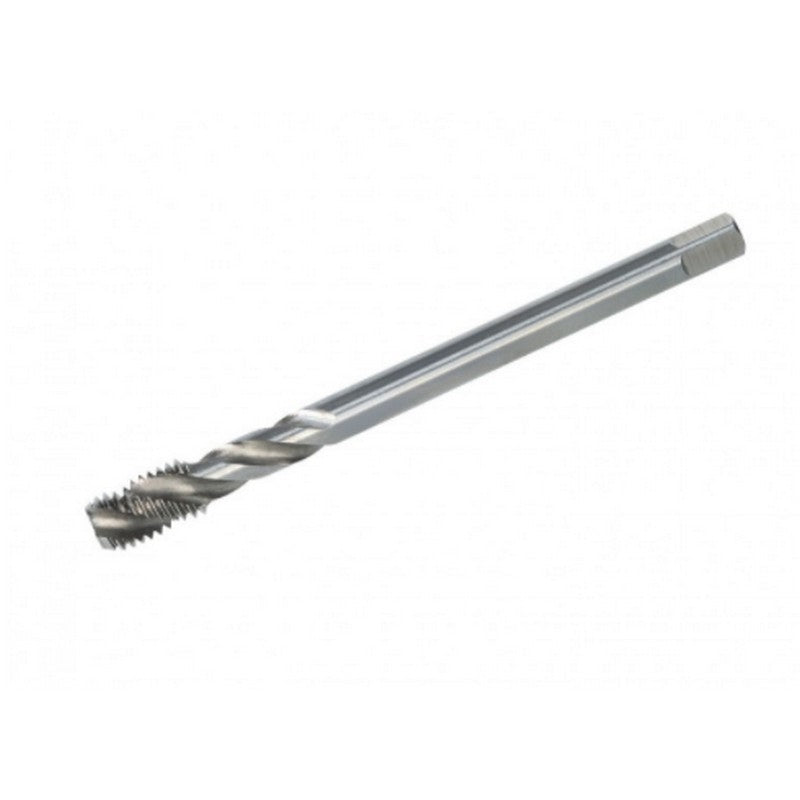

Volkel 38738 Machine Tap DIN 376 Form C 35° Spiral Flute HSSE - M 6 x 1.0

Name: Volkel 38738 Machine Tap DIN 376 Form C 35° Spiral Flute HSSE - M 6 x 1.0
Brand: Volkel
SKU: VOL-38738M6
Price: 20.00 USD
Availability: InStock

$20.00 USD

Sale Sold out

FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.

Condition: New

High precision engineering, made in Germany.

Specifications

Type of thread metric ISO-thread
Standard DIN 376
Form Form C
Material HSSE
Tolerance ISO2 (6H)
Size M 6 x 1.0
Overall length (L1) 80 mm
Thread length (L2) 10 mm
Core hole diameter (D1) 5.0 mm
Shank diameter (D2) 4.5 mm
Drive connector 3.4 mm
Type of flute 35° Spiral Flute
Application for blind holes
Thread standard DIN 13
